If you've ever heard a clunk or felt your car shake when speeding up, your U-joint might be the cause. This small part links the drive shaft to your transmission, keeping power flowing smoothly to the wheels.

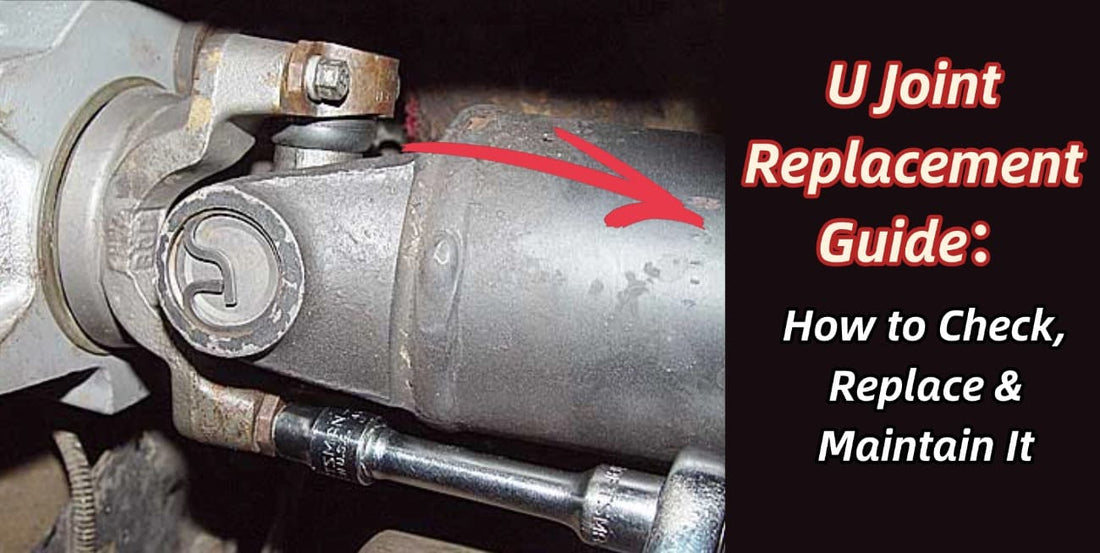

In this U joint replacement guide, I'll show you what a universal joint is, how to spot bad signs, and how to check, replace, and maintain your U-joints easily at home.
If you're not sure which drive shaft u joint replacement fits your car, you can always reach out to ST Cardan Shaft for the right match and expert help.
CONTENT:
What Are Universal Joints (U-Joints)?
U-joint (universal joint) is a small but key part that links your drive shaft to the transmission and differential. It lets the shaft spin and bend at the same time so your wheels keep getting power even when the angles change. Think of it like your wrist: it bends, but it still passes your hand's motion through. If you ever hear a clunk from underneath your car or feel a weird shake when you hit a bump, the trouble might come from the universal joint.
1. Universal Joint Locations and Function in Drive Shafts
You'll often find the U-joint for drive shaft near the ends of the shaft. In a typical rear-wheel drive car, one is at the transmission end and one at the differential end.
In longer vehicles, like trucks and SUVs, there may be a center bearing or a third U-joint in the middle. The universal joint locations matter because when the shaft moves up & down or the angle changes, the U-joint lets it flex instead of binding.
drive shaft u joint diagram
Why does that matter? If a U-joint fails, the drive shaft can wobble or stop transmitting power smoothly, which can affect the whole car's performance.
2. Universal Joint Parts Explained
A U-joint might look like one part but it's really made of several components that work together.
Here's a quick table to break down the major parts and what they do:
| Part Name | Function | Typical Material |
|---|---|---|
| Cross (Spider) | Transfers torque between the two yokes | Alloy steel |
| Grease Seal | Prevents grease leakage and keeps out dirt and moisture | Synthetic rubber or nitrile rubber (NBR) |
| Bearing Caps | Hold the needle bearings in place | Hardened steel |
| Needle Bearings | Reduce friction as the joint rotates | Carbon steel |
| Snap Rings | Secure the bearing caps inside the yoke | Spring steel |
| Yoke | Connects to the ends of the drive shaft | Forged steel |
These u-joint parts are built tough because the joint takes a lot of stress. The universal joint cross and bearings are especially critical — when they wear out, that's when you'll start seeing symptoms down the road.
3. U-Joint vs CV Joint: What's the Difference?
You might wonder: are U-joints and CV (constant velocity) joints the same? The answer: they're similar in function (they transmit power through an angle) but different in design and use. Here's a clear comparison I made to help you understand:
| Feature | U-Joint | CV Joint |
|---|---|---|
| Application | Rear-wheel drive, longer shafts | Front-wheel drive, tighter angles |
| Motion Type | Non-constant velocity (velocity varies slightly with angle) (designworldonline.com) | Constant velocity (maintains more even speed) |
| Maintenance | Often needs greasing | Usually sealed, low maintenance |
| Durability | Great when angles are small | Better when angles are large |
In simple terms, if your car has a long drive shaft and the angle is small, you'll find a U-joint. If the angle is sharper (for example in a front-wheel drive car), you'll find a CV joint. Understanding this difference helps you know why your vehicle uses one type or the other.
So now you get what a U-joint does. But how do you know when it's going bad? Let's look at the signs you should never ignore.
How to Tell If a Universal Joint Is Bad
From my own experience working with drive shafts, I can say that bad U-joint symptoms often start small — a faint sound or a tiny shake — and get worse over time. Learning how to tell if a universal joint is bad early can save you from a costly repair later.
1.Common Signs of a Bad or Failing U-Joint
Most bad U-joint symptoms are easy to notice once you know what to look (or listen) for. Here are the most common ones I've seen:
- Clunking noise when shifting from park to drive
- Vibration at high speed, especially around 60 mph
- Squeaking sound at low speed or when backing up
- Difficulty turning or a stiff feeling while rotating
- Transmission fluid leak or loosened driveshaft
Here's a quick table to match each symptom with its possible cause:
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Clunking sound | Excess play in U-joint | Check yokes and cross bearings |
| High-speed vibration | Worn bearings | Inspect driveshaft balance |
| Squeaking at low speed | Dry bearing caps | Apply grease or replace joint |
| Difficulty turning | Joint binding | Replace immediately |
| Fluid leak | Driveshaft misalignment | Inspect both joints and seals |
Keep in mind, some noises or shakes don't always mean a broken U-joint. They could come from other parts of the driveshaft.
If you want to dig deeper into that, check out our post What Are the Bad Drive Shaft Symptoms You Should Never Ignore for a full breakdown.
2.[Step-by-Step Inspection] How to Check Universal Joints
Steps to Check Your Universal Joints at Home:
Step 1: Park on level ground, engage the parking brake, and chock the wheels.
Step 2: Crawl under the car and grab the driveshaft near the U-joint.
Step 3: Twist it firmly back and forth. Any play or clicking sound indicates wear.
Step 4: Slowly rotate the shaft and watch the cross. If the bearing caps move, rattle, or leak grease, it's time for a replacement.
Pro tip: Some cars use staked U-joints that aren't removable. If yours looks like that, see our FAQs section for how to handle them.
3.When to Replace a Universal Joint (and Cost Overview)
So, when is it time to replace it?
If you can feel looseness, hear loud clunks, or notice strong vibration, you're already past the safe point. That's when a universal joint replacement becomes necessary.
Here's a quick cost overview based on U.S. market data from RepairPal and YourMechanic:
| Type of Vehicle | Typical Replacement Cost (USD) | Labor Hours | Notes |
|---|---|---|---|
| Small sedan | $180–$300 | 1.5–2.0 | One U-joint |
| Pickup / SUV | $250–$450 | 2.0–3.0 | Two joints or longer shaft |
| Heavy-duty truck | $400–$700 | 2.5–3.5 | Higher torque load |
| 4WD system | $500–$800 | 3.0–4.0 | May include CV replacement |
If you're still unsure about the drive shaft U-joint replacement cost, the best move is to get a direct quote from a trusted manufacturer like ST Cardan Shaft — they'll give you the right match and help you avoid unnecessary part swaps.
[Detailed Guide] How to Measure and Choose the Right U-Joint
Once you know your old U-joint is worn out, the next step is to measure it correctly — that’s the key to buying the right replacement. Getting the size wrong is one of the biggest mistakes I’ve seen beginners make. So let me walk you through how to measure U-joints correctly.
Steps to Measure Your U-Joint Accurately:
Step 1: Remove and Clean the Old U-Joint
Before measuring, take out the old joint and wipe away all grease and dirt. A clean part helps you get accurate readings.
Step 2: Measure the Overall Width
Use a caliper to measure two key points:
- Cap diameter: the outside diameter of one bearing cap.
- Overall width: the distance from one cap edge to the other on the same axis.
These two numbers define the basic size when learning how to measure U joints or how to measure a U-joint.
Step 3: Verify with the Chart
Once you've got your numbers, compare them with a U-joint size chart (like the one below). It helps you find your correct U joint for drive shaft and avoid buying the wrong model.
| U-Joint Type | Cap Diameter (A) | Overall Width (B) | Snap Ring Type | Typical Application |
|---|---|---|---|---|
| 1310 Series | 1.062 in (27mm) | 3.219 in (82mm) | External | Light-duty driveshaft |
| 1330 Series | 1.062 in (27mm) | 3.622 in (92mm) | External | Mid-size trucks |
| 1350 Series | 1.188 in (30mm) | 3.625 in (92mm) | External | Heavy-duty driveshaft |
| 1410 Series | 1.188 in (30mm) | 4.188 in (106mm) | External | High-torque vehicles |
| 1480 Series | 1.375 in (35mm) | 4.188 in (106mm) | Internal | Heavy machinery |
(Table reference for identifying U joints by size and matching your U joint for drive shaft type.)
Common Measuring Mistakes to Avoid:
Even small errors can make your new joint not fit. Here are some common measuring mistakes to watch out for:
- Measuring across worn caps → gives a smaller reading and wrong size.
- Ignoring clip style → leads to mismatch between the joint and yoke.
- Not checking yoke width → the shaft end won't fit even if the joint looks right.
How to Remove and Install Universal Joints
Once you've measured and picked the right U-joint size, it's time to remove the old one and install the new joint.
This process might look tough, but with the right tools and a bit of patience, you can do it safely — even in your own garage.
1.Tools Needed for U-Joint Replacement
Now that the tools are ready, let's take off the old U-joint.
| Tool | Purpose | Notes |
|---|---|---|
| Hydraulic Press | Press out and press in bearing caps | Recommended for smooth and precise work |
| Snap Ring Pliers | Remove or install the retaining clips | Must-have for clip-type joints |
| Brass Punch & Hammer | Tap out caps gently without damage | Avoid using a steel hammer directly |
| Socket & Wrench Set | Unbolt driveshaft from the yokes | Use correct SAE/metric sizes |
| Safety Glasses & Gloves | Protect eyes and hands | Always wear before hammering |
| Handheld U-Joint Removal Kit (optional) | DIY alternative to a press | Slower but safe for home use |
Tip: If you don't own a press, a socket and vise setup can still work fine for DIY removal.
2.How to Remove a Universal Joint (Step-by-Step)
Now that the tools are ready, let's take off the old U-joint.
Steps for Removing the Old U-Joint:
Step 1: Secure the Vehicle – Park on level ground, chock the wheels, and apply the parking brake.
Step 2: Remove the Driveshaft – Unbolt it from the differential yoke and transmission end.
Step 3: Clean Around the Joint – Wipe away grease, rust, and dirt to expose the clips.
Step 4: Remove Snap Rings – Use pliers or a flat screwdriver to take off all four retaining clips. (Be careful: they can fly off suddenly!)
Step 5: Press Out the Bearing Caps –
- Use a press or hammer + brass punch to drive the caps out.
- Add a bit of penetrating oil to loosen rusty parts.
Step 6: Take Out the Cross (Spider) – Once both caps are out, remove the U-joint cross carefully.
Step 7: Inspect the Yokes – Check for burrs, cracks, or rust inside the bore.
Smooth small burrs with fine sandpaper (1000–1500 grit).
Step 8: Clean and Prep – Clean the grooves for the new clips. If there's rust, remove it completely.
3.How to Install a New Universal Joint
Now that the old one's gone, let's install your new U-joint step by step.
Steps for Installing the New U-Joint:
Step 1: Prepare the New Joint – Remove the bearing caps and apply a small amount of grease inside.
Step 2: Insert the Cross – Position the joint cross inside the yoke, keeping it centered.
Step 3: Press Bearing Caps In –
- Use a press or socket/hammer combo to push each cap in evenly.
- Never force it—if it feels too tight, stop and check the alignment.
Step 4: Install Snap Rings – Put the clips into the grooves until they seat fully.
Step 5: Check Movement – Move the joint by hand; it should rotate smoothly with no stiffness or play.
Step 6: Reinstall the Driveshaft – Bolt it back to the differential and transmission.
- Tighten to the factory torque specs.
Step 7: Final Check – Spin the shaft to ensure alignment and take a short test drive.
Pro Tip: If the new joint feels too tight, lightly tap the yoke ears with a hammer. This helps the bearings settle and smooth out the motion.
4. Common Mistakes to Avoid During Installation
Even small mistakes can shorten your new U-joint's life. Avoid these common problems:
- Misaligned Cross: If the cross isn't centered, bearing caps will crush or bind.
- No Lubrication: Skipping grease causes early wear and squeaks.
- Loose Clips: If clips aren't fully seated, the joint can pop out under torque.
- Overtightening Bolts: This can warp the yoke and cause vibration.
How to Grease and Maintain Universal Joints
If you want your driveshaft to run smoothly, learning how to grease universal joints is just as important as replacing them.
Proper u joint lubrication keeps your vehicle quiet, prevents vibration, and helps your U-joint last years longer.
1. Why Lubrication Matters
A thin film of grease reduces metal-to-metal contact inside the joint. That means less friction, less heat, and a much longer bearing life.
Without regular universal joint maintenance, the caps can run dry, causing grinding noises and even driveshaft vibration at high speed.
A study from SKF Bearing Engineering Handbook shows that a properly greased bearing can last up to three times longer than a dry one.
That's why lubrication isn't optional — it's protection for your drivetrain.
2. How Often Should You Grease?
How often you should grease depends on your vehicle type and driving conditions.
Here's a quick guide you can follow:
| Vehicle Type | Greaseable U-Joint | Sealed U-Joint | Notes |
|---|---|---|---|
| Small Car | Every 12,000 miles | Check at service | Mostly low-stress driving |
| Pickup / SUV | Every 6,000–8,000 miles | Check at service | Moderate loads, mixed terrain |
| Heavy Truck | Every 3,000–5,000 miles | Check at service | High torque, heavy hauling |
Here's a quick guide you can follow for U-joint maintenance intervals.
3. Step-by-Step Greasing Guide
Here's how I usually do it in my garage — simple, safe, and effective.
Steps for Greasing Your U-Joint:
Step 1: Clean the Area
Find the small nipple called the Zerk fitting on your joint. Wipe it and the surrounding metal clean to avoid pushing dirt inside.
Step 2: Attach the Grease Gun
Snap the tip of the grease gun tightly onto the fitting. You should feel or hear a light click.
Step 3: Pump the Grease
Pump slowly until you see new grease pushing out from the bearing caps. Old grease looks dark; new grease looks bright and clean. That’s your sign it’s full.
Step 4: Rotate the Driveshaft
Turn the shaft slightly by hand. This helps spread the grease evenly through all four bearings.
Step 5: Wipe Off Excess
Use a rag to remove the extra grease — leaving too much will catch dirt and dust later.
Note: For sealed (non-greaseable) U-joints, do not try to add grease. If they start making noise or cause vibration, replacement is the only fix.
FAQs About Changing U Joints:
1. What Is a Staked U-Joint?
A staked U-joint is a type of universal joint that's pressed and staked into the yoke using metal tabs instead of clips. This design makes it non-serviceable — you can't easily replace it without special tools.
You'll often find staked-in U-joints on Japanese cars such as Honda or Toyota. Because the metal is staked in place, it can't be removed like a regular clip-retained U-joint.
| Type | How It’s Fixed | Serviceability | Replacement Method |
|---|---|---|---|
| Clip-retained | Secured with snap rings | Easy to replace | Remove clips and press out |
| Staked | Metal staked into yoke | Hard to service | Requires cutting or new driveshaft |
Tip: If your vehicle uses a staked universal joint, the best option is usually to replace the whole driveshaft or send it to a professional manufacturer such as ST Cardan Shaft for proper machining.
2. How does a universal joint work?
A universal joint (U-joint) transfers rotational power between two shafts that aren't in a straight line. It allows the driveshaft to keep turning smoothly even when it's at an angle — like a wrist bending while still turning a doorknob.
This flexibility helps the drivetrain handle bumps, suspension movement, and slight misalignment without losing power.
3. What are U-joints used for?
U-joints connect the driveshaft to the transmission and differential, letting power move to the wheels even when the angles change.
They're essential in rear-wheel-drive, 4WD, and truck setups — basically any vehicle where the power has to travel a long distance through the driveshaft.
4. How many universal joints does a truck have?
It depends on the truck's design:
- Light-duty trucks: usually 2 U-joints (one at each end of the driveshaft).
- Heavy-duty or long-wheelbase trucks: often 3 or more U-joints to support longer shafts and handle higher torque.
More joints mean smoother operation but also more points to inspect and maintain.
5. How long do universal joints last?
A well-maintained U-joint can last 100,000 miles or more, but it depends on how you drive. Heavy towing, off-road driving, or poor lubrication can wear them out faster. Regular greasing and inspection — like every oil change — can prolong U-joint life and prevent vibrations.
6. How to remove a universal joint from a drive shaft?
Steps for Removing a U-Joint from a Driveshaft:
Step 1: Secure the vehicle safely and remove the driveshaft.
Step 2: Take out the snap rings or clips.
Step 3: Use a press or bench vise to push out the bearing caps.
Step 4: Remove the cross carefully to avoid damaging the yoke.
You can check Part 4 of this guide for a step-by-step visual and recommended tools.
7. How much does universal joint replacement cost?
| Vehicle Type | Typical Cost (USD) | Notes |
|---|---|---|
| Small sedan | $180–$300 | One U-joint, light labor |
| Pickup / SUV | $250–$450 | Usually two joints or longer shaft |
| Heavy truck | $400–$700 | High torque load, longer labor |
| 4WD system | $500–$800 | May include CV joint replacement |
Sources: RepairPal, YourMechanic, CarParts.com
For accurate pricing and technical support, it's best to request a direct quote from the manufacturer, such as ST Cardan Shaft, to ensure the right fit and best value.
8. Can universal joints be repaired?
Some universal joints can be re-greased or lightly serviced if they're greaseable and only slightly worn.
However, most damaged U-joints, especially those with worn bearings or cracked crosses, should be fully replaced. Trying to fix them halfway can lead to drivetrain failure or vibration issues. Replacement ensures smoother performance and safety.
Conclusion
Proper U-joint replacement is key to keeping your drive shaft running smoothly. Regular inspection, correct measurement, and proper installation and greasing help prevent costly damage and extend joint life.
For reliable parts and expert guidance, work directly with ST Cardan Shaft to get high-quality U-joints and technical support. Whether you're checking symptoms or planning a replacement, they can help ensure the right fit and avoid unnecessary costs.
