Welded Flexible Shaft - Type A Series

The Light Duty Type A Series uses a welded connection and supports length compensation. It is suitable for light industrial equipment.

This series includes 10 models with the following specifications:

    ● Nominal torque: 150–22000 N·m

    ● Flanged diameter: 58-225 mm

    ● Standard length: 255–860 mm (custom lengths available)

Below are the design drawings and detailed product parameters for the Type A series.

Design and Data Sheet – Light Duty Type A Series:

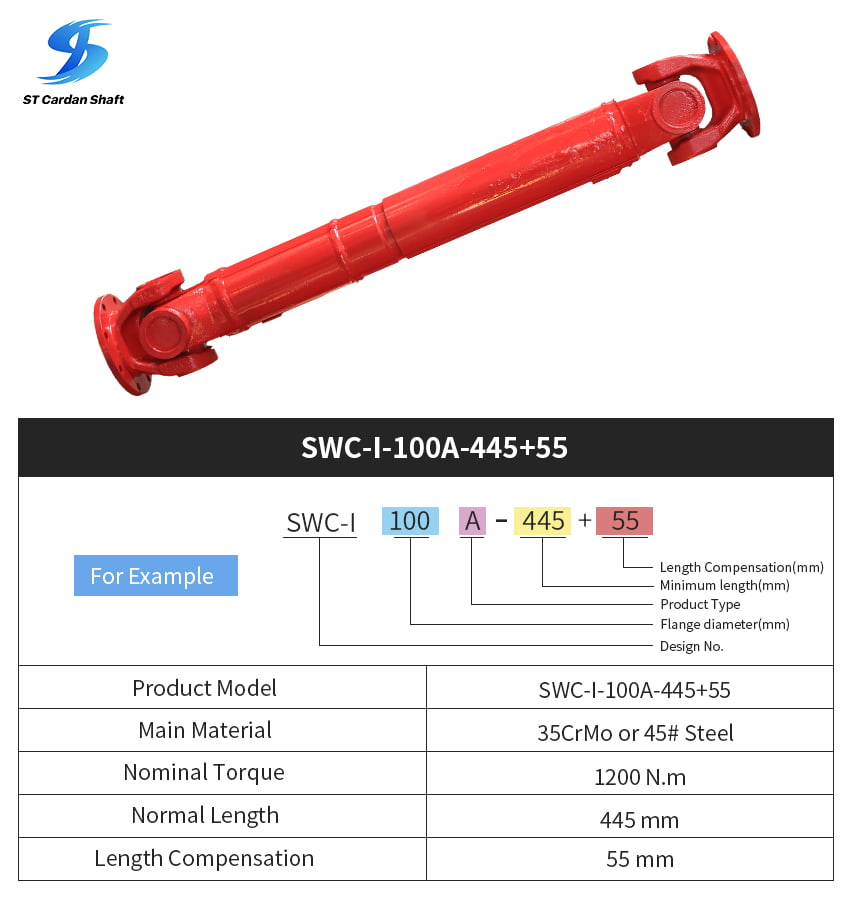

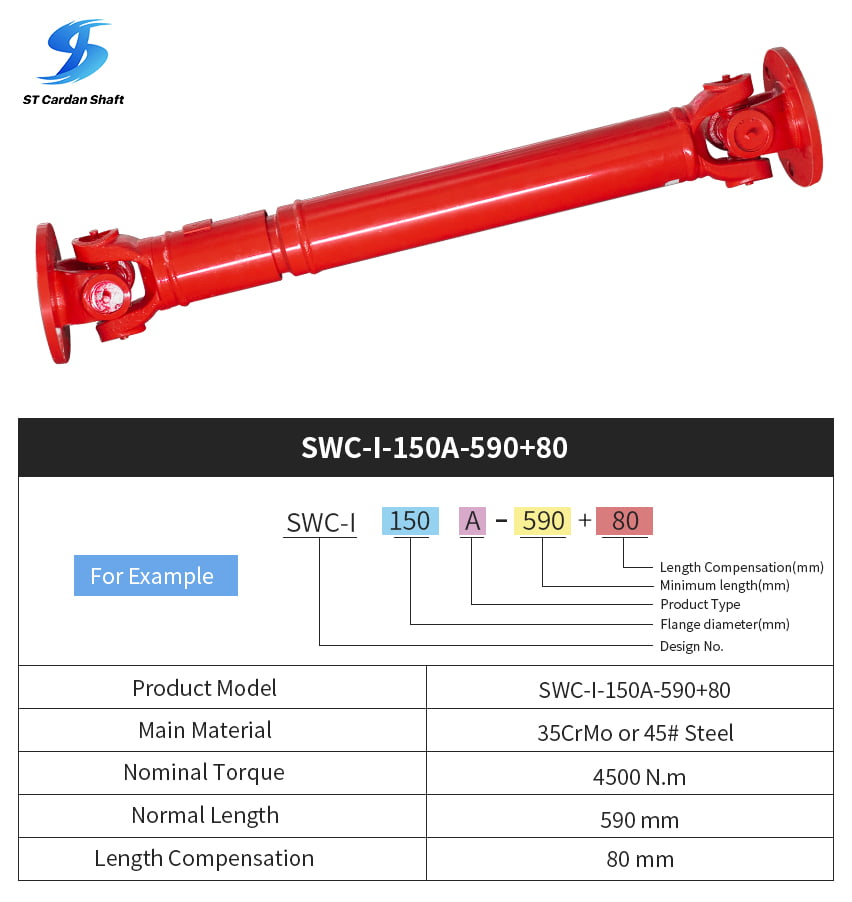

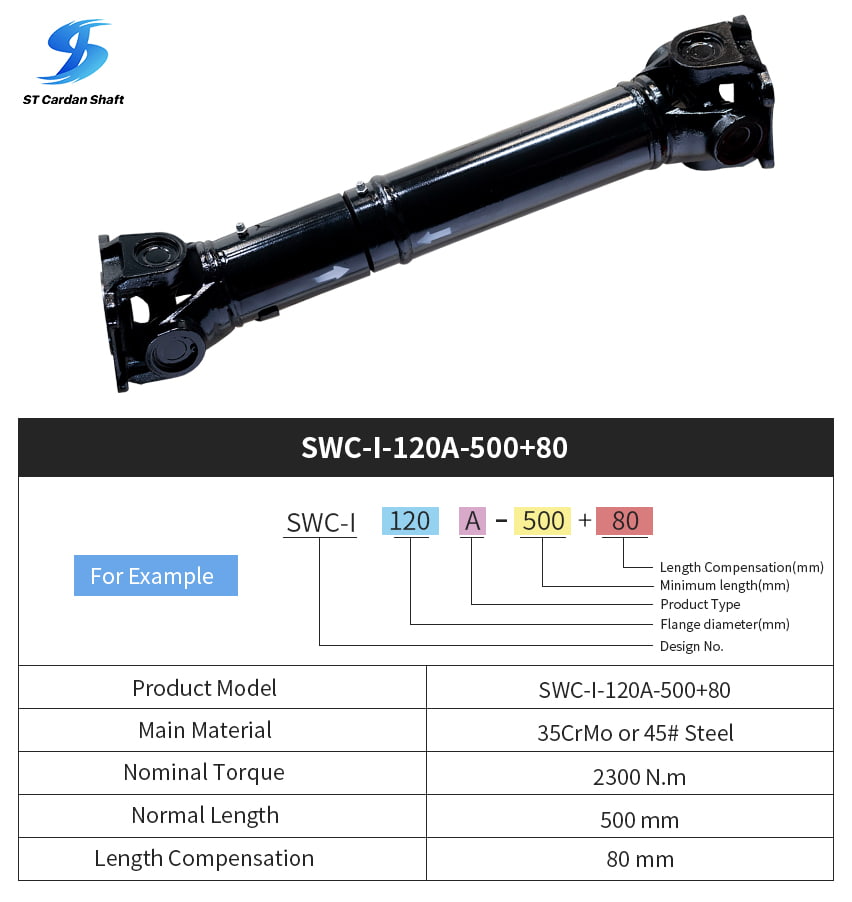

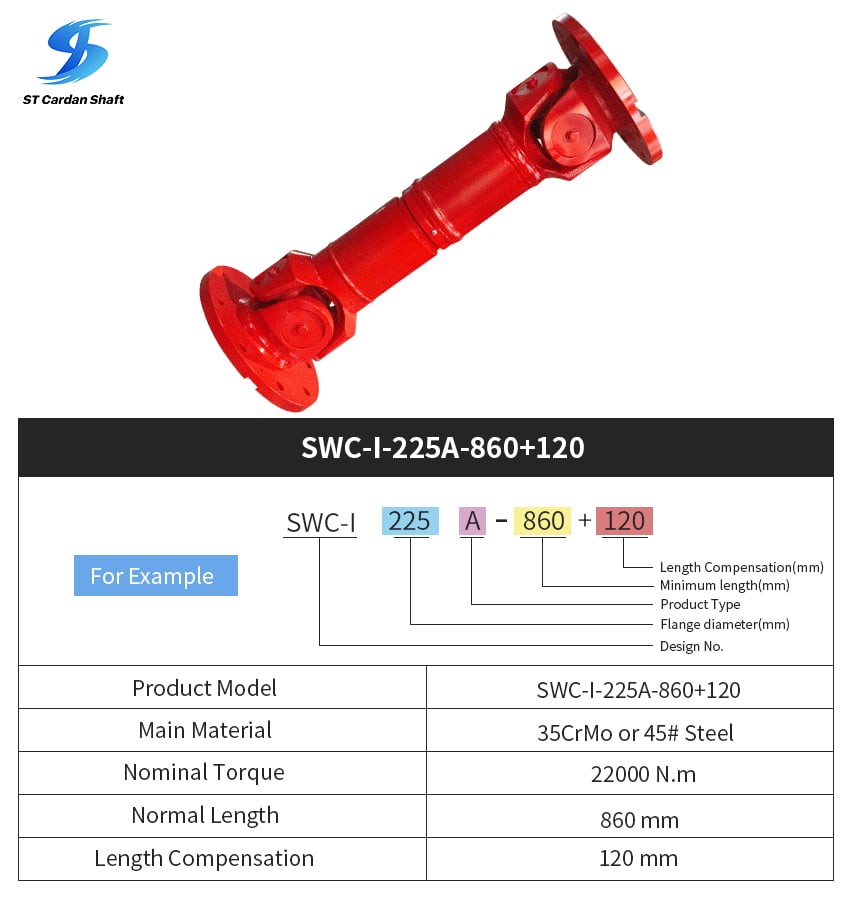

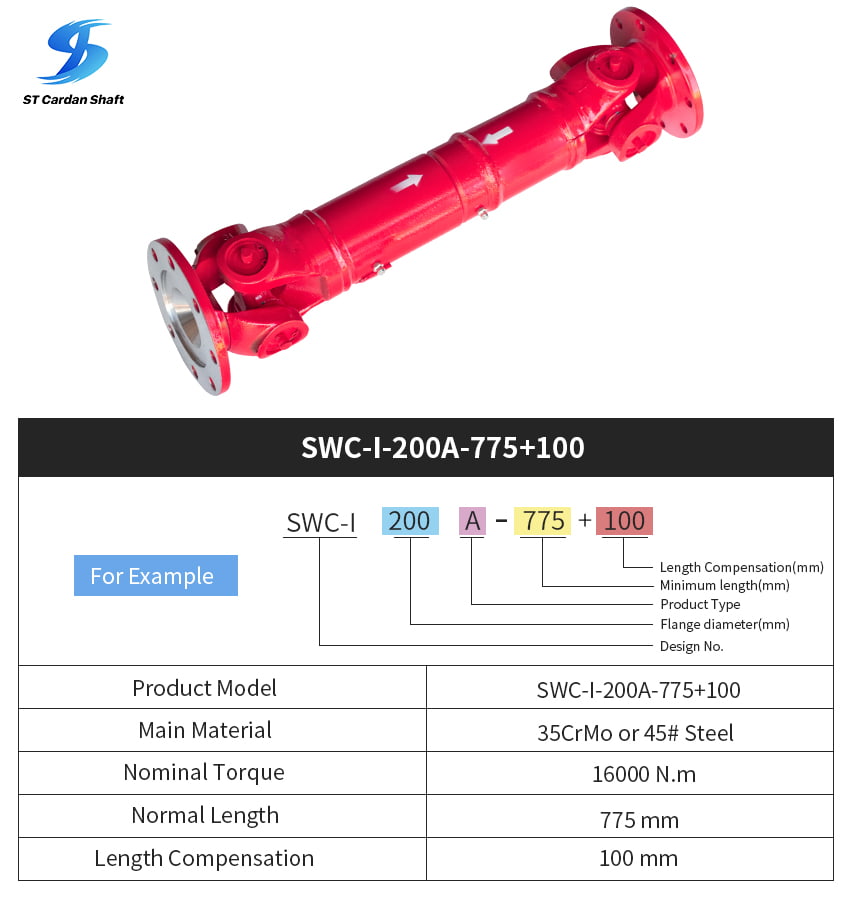

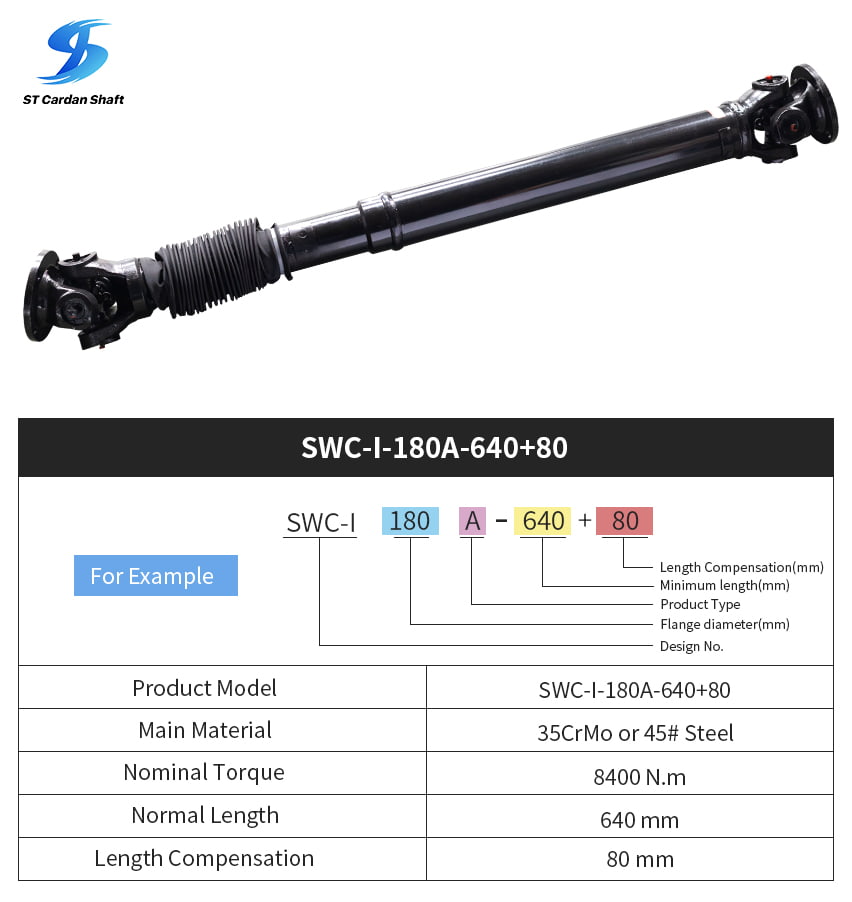

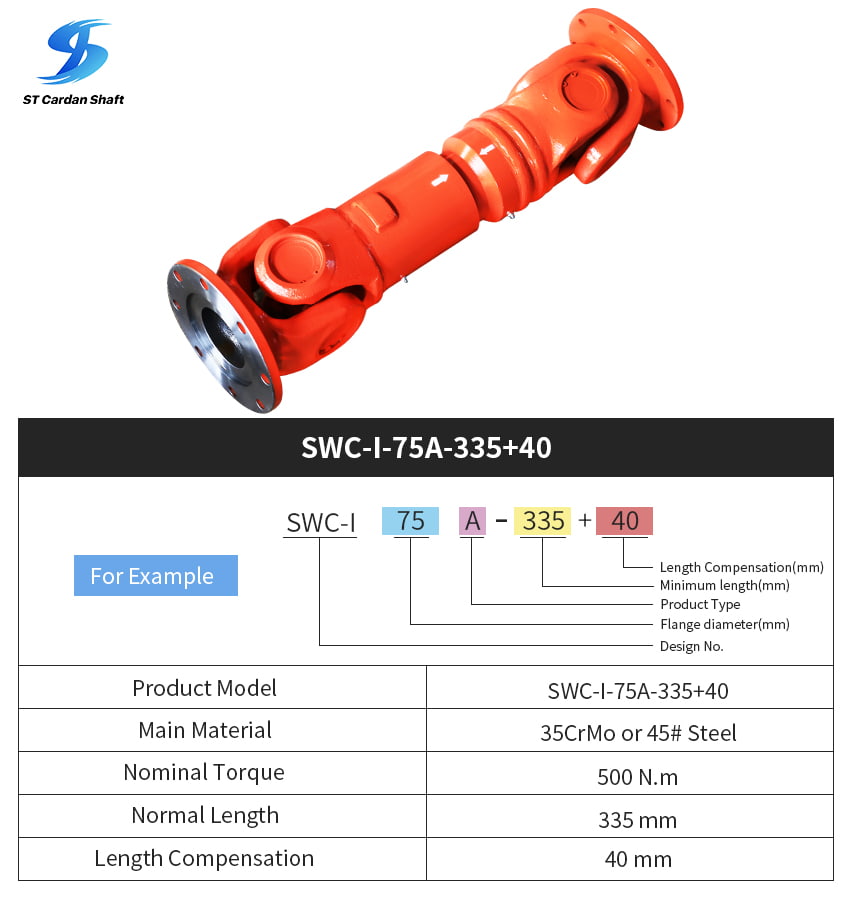

Model	SWC-I 58	SWC-I 65	SWC-I 75	SWC-I 90	SWC-I 100	SWC-I 120	SWC-I 150	SWC-I 180	SWC-I 200	SWC-I 225
L	255	285	335	385	445	500	590	640	775	860
Lv	35	40	40	45	55	80	80	80	100	120
m (kg)	2.2	3	5	6.6	9.5	17	32	40	76	128
Tn (N·m)	180	240	500	800	1200	2300	4500	8400	16000	22000
Tf (N·m)	90	120	250	400	600	1150	2250	4200	8000	11000
β (°)	30	30	30	30	30	30	30	25	25	25
D	52	63	72	92	100	112	142	154	187	204
Df	58	65	75	90	100	120	150	180	200	225
D1	47	52	62	74.5	84	101.5	130	155.5	170	196
D2 (H9)	30	35	42	47	57	75	90	110	125	140
D3* θ	45*3	45*3	45*3	63.5*2.5	63.5*2.5	76*4	90*3	92*6.5	120*6	140*9
Lm	32	39	45	52	55	63	78	90	110	120
k	3.5	4.5	5.5	6	8	8	10	14	17	18
t	1.5	1.7	2	2.5	2.5	2.5	3	4	4	5
n	4	4	6	4	6	8	8	8	8	8
d	5.1	6.5	6.5	8.5	8.5	10.5	13	15	17	17
ML (kg)	0.14	0.16	0.38	0.38	0.53	0.53	0.87	0.87	1.65	2.14
Flange Bolt
Size	M5	M6	M6	M8	M8	M10	M12	M14	M16	M16
Tightening torque (N·m)	7	13	13	32	32	64	110	180	270	270

    ● Reinforced welded joint – provides stable torque transfer and higher reliability during continuous operation.

    ● Axial length compensation – absorbs minor misalignment and reduces vibration, protecting connected machinery.

    ● Wide working range – delivers 150–22000 N·m torque and 58–225 mm flange diameter, with flexible shaft lengths tailored to your equipment.

    ● Customizable from 1 piece – one-piece MOQ available, with tailored length and configuration to fit your equipment.

    ● Configurable flange connections – four adapter options: bolt hole, face key, integral face pad, or hirth section, all available for customization.
