ST Cardan Shaft

Welded Flexible Drive Shaft – Type A Series

Welded Flexible Drive Shaft – Type A Series
Regular price $200.00USD
Regular price Sale price $200.00USD
Sale Sold out

Contact Us to Order

The Heavy & Medium Duty Type A Series is designed with a welded flexible connection to handle continuous heavy-load operations. It is well-suited for marine transmissions, roller tables, and other demanding machinery.

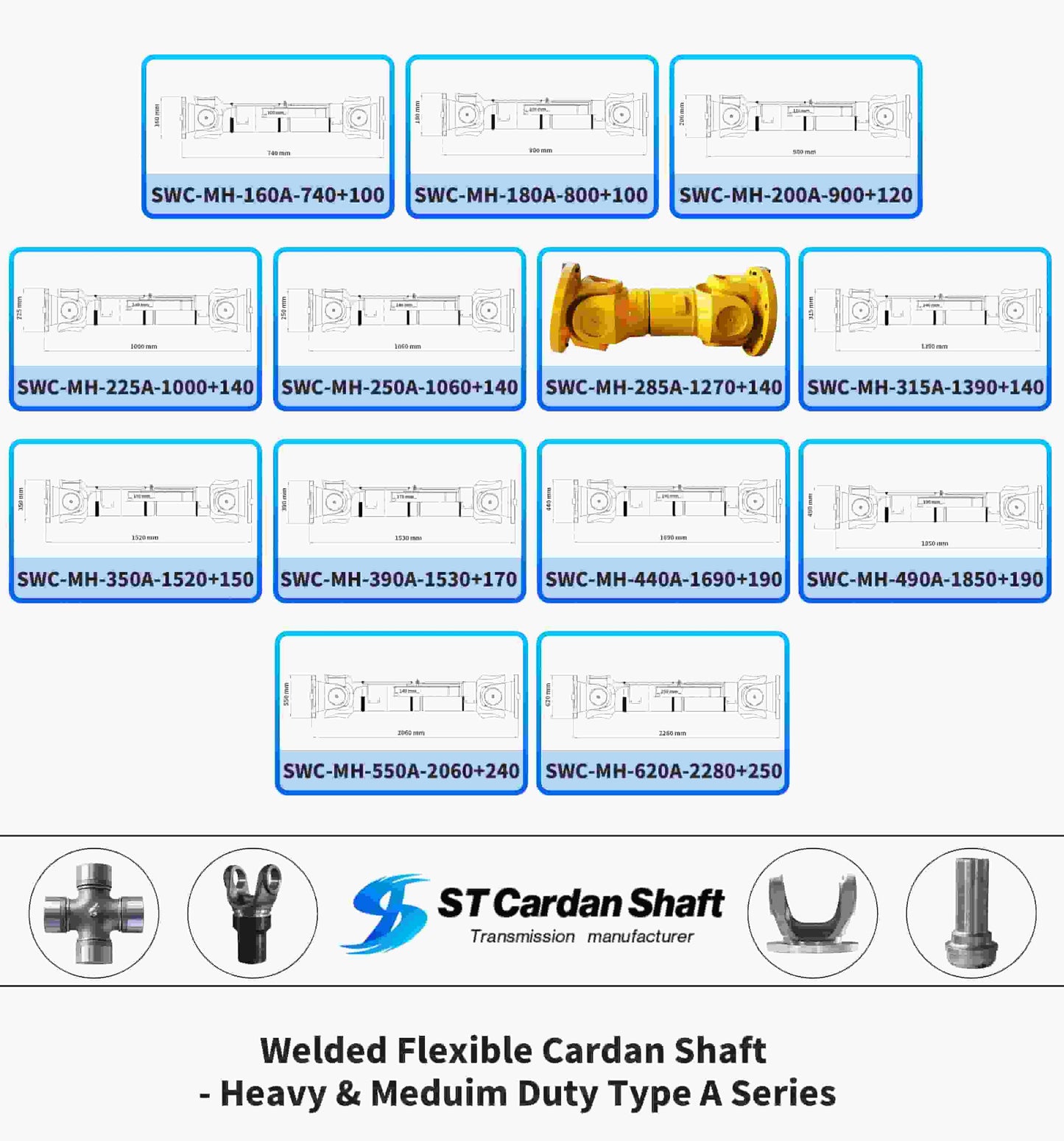

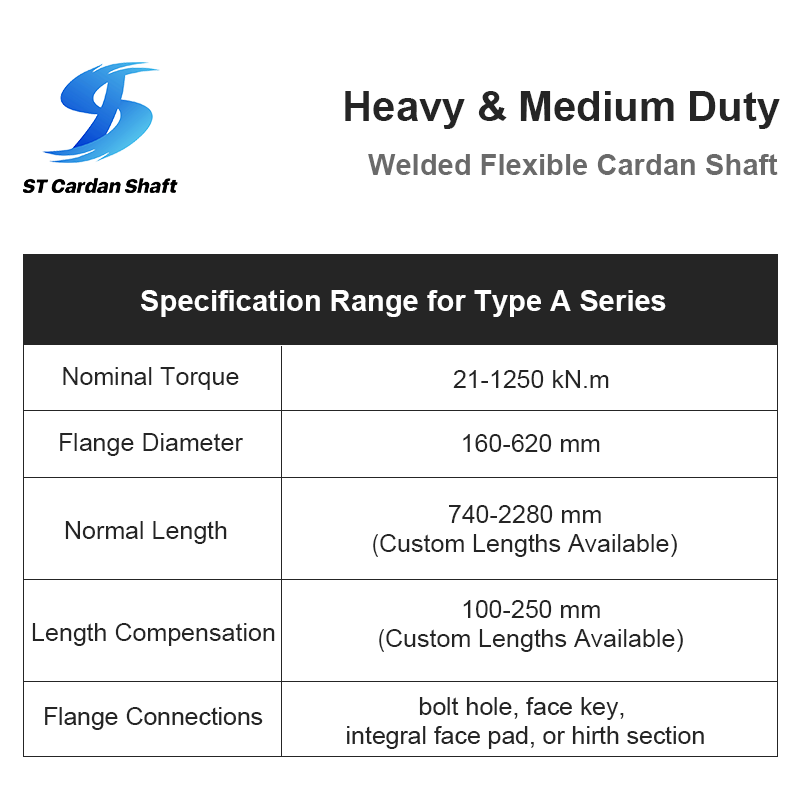

This series includes multiple models with the following specifications.
    ● Nominal torque: 21–1,250 kN·m
    ● Flanged diameter: 160–620 mm
    ● Length range: 740–2,280 mm (custom lengths available)

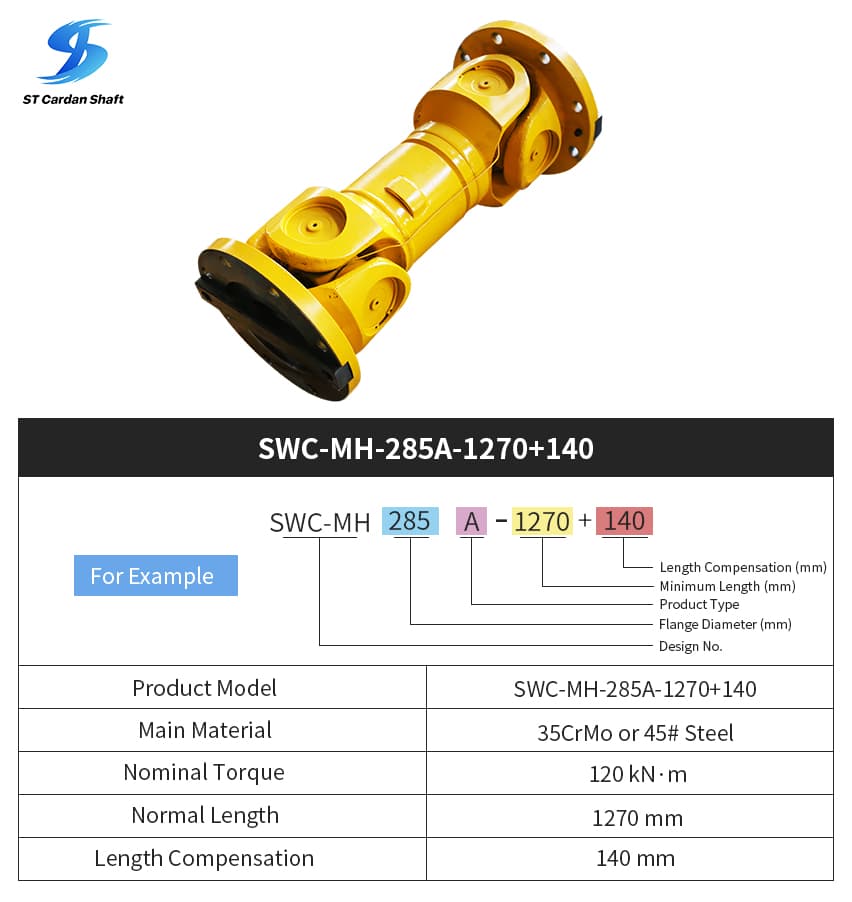

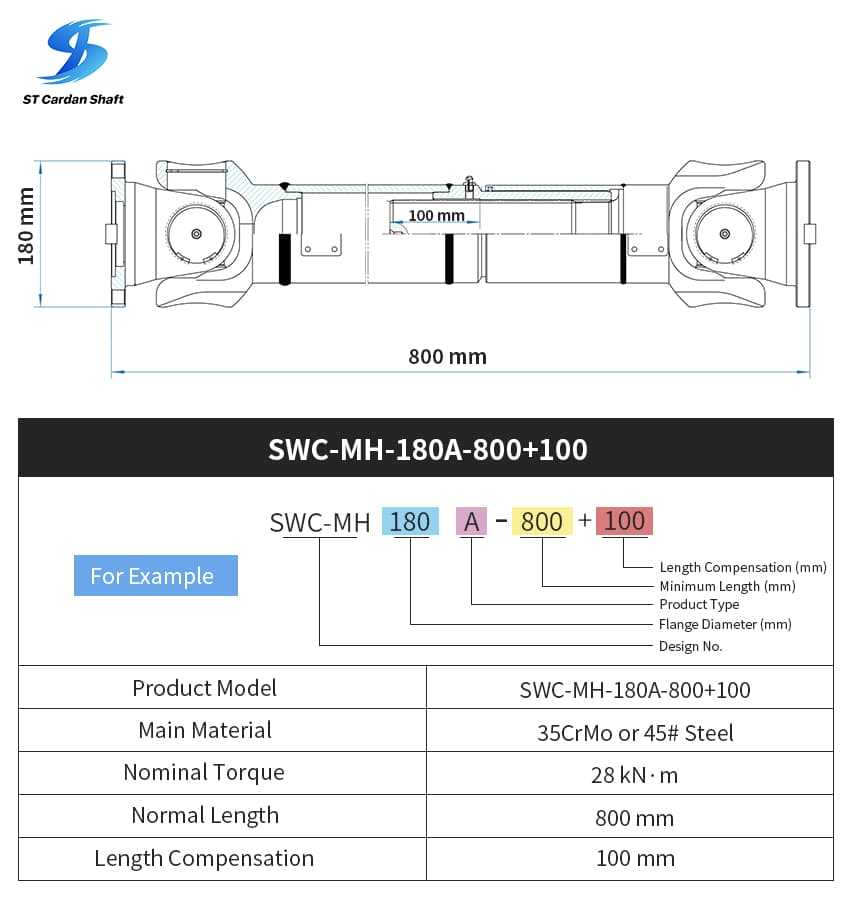

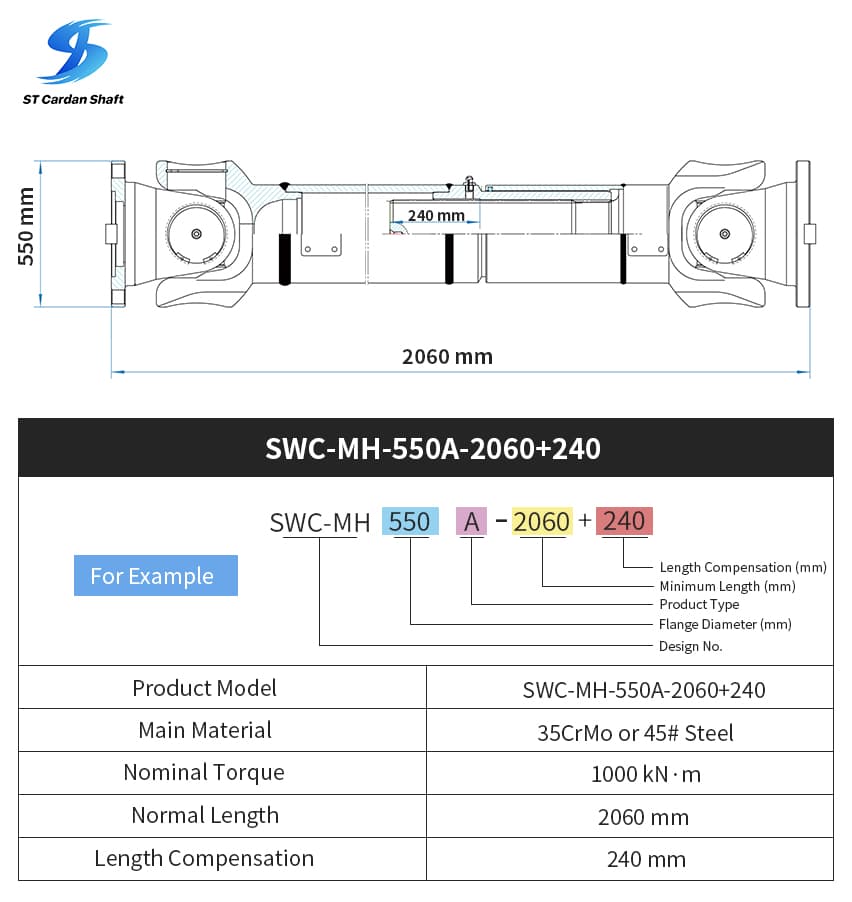

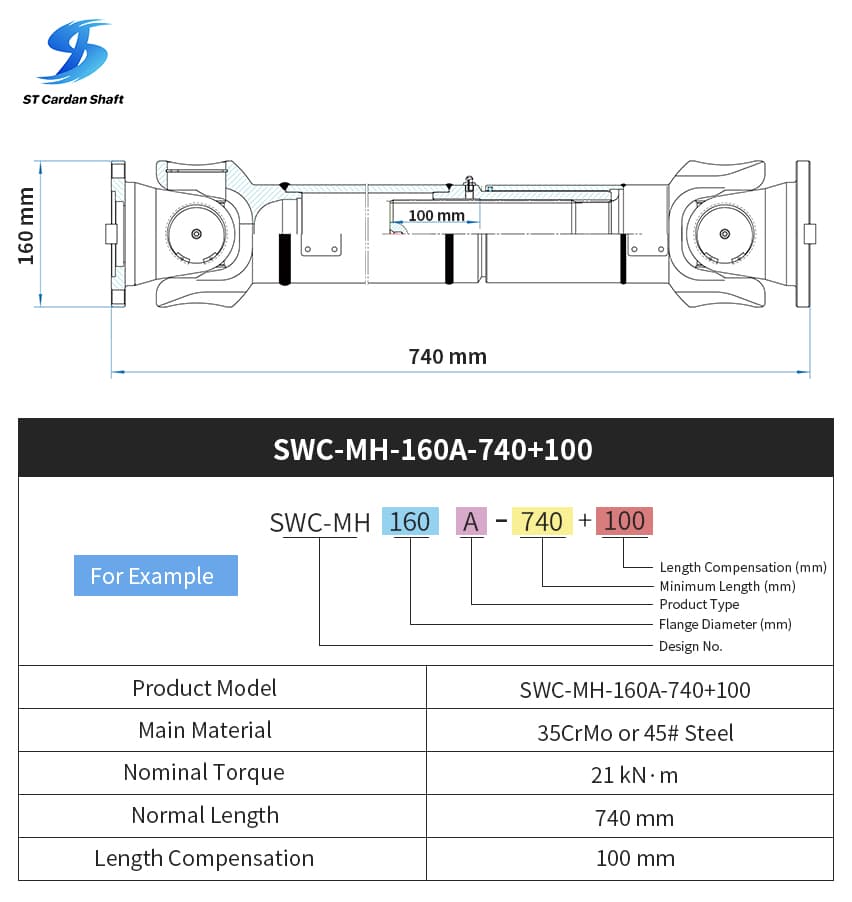

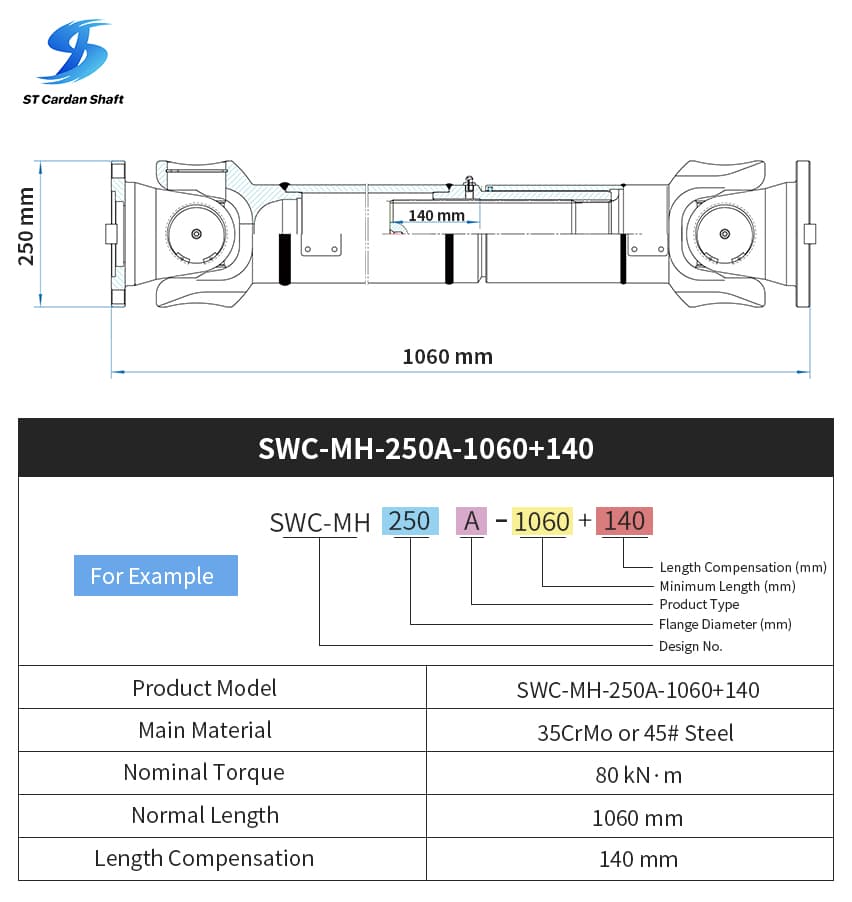

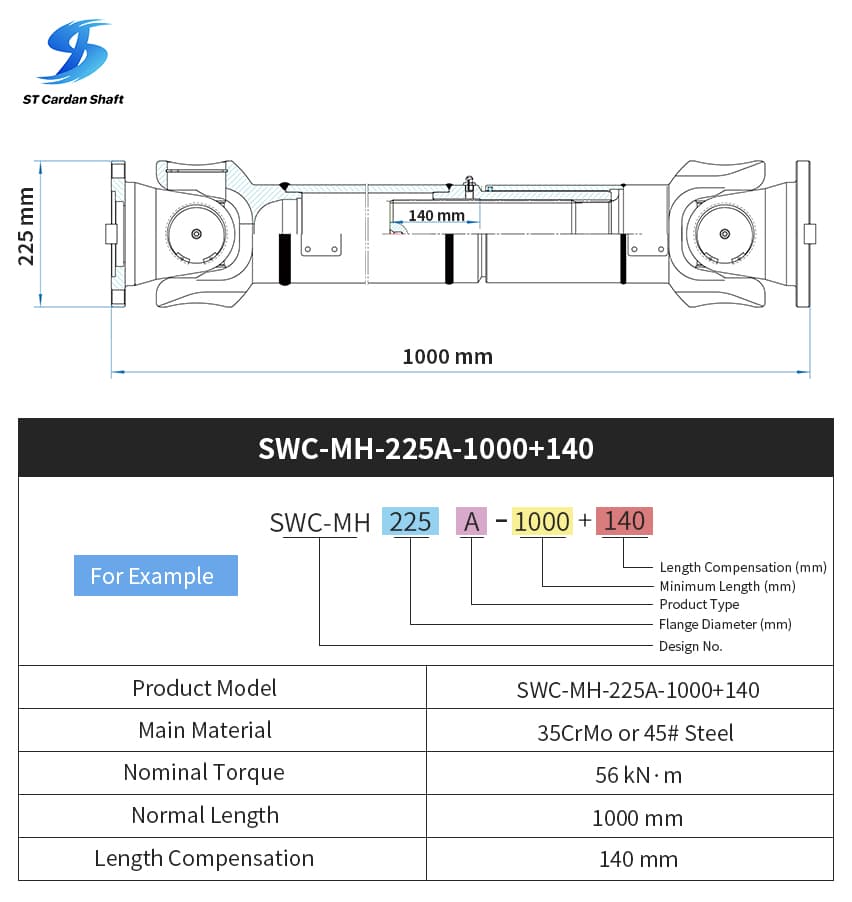

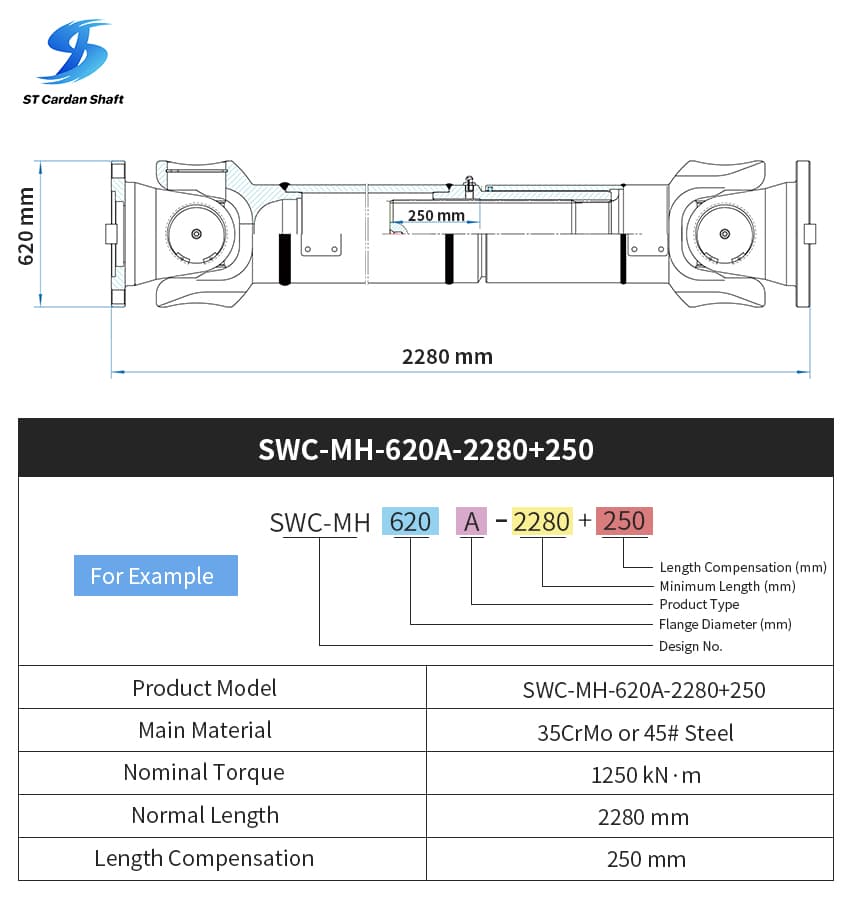

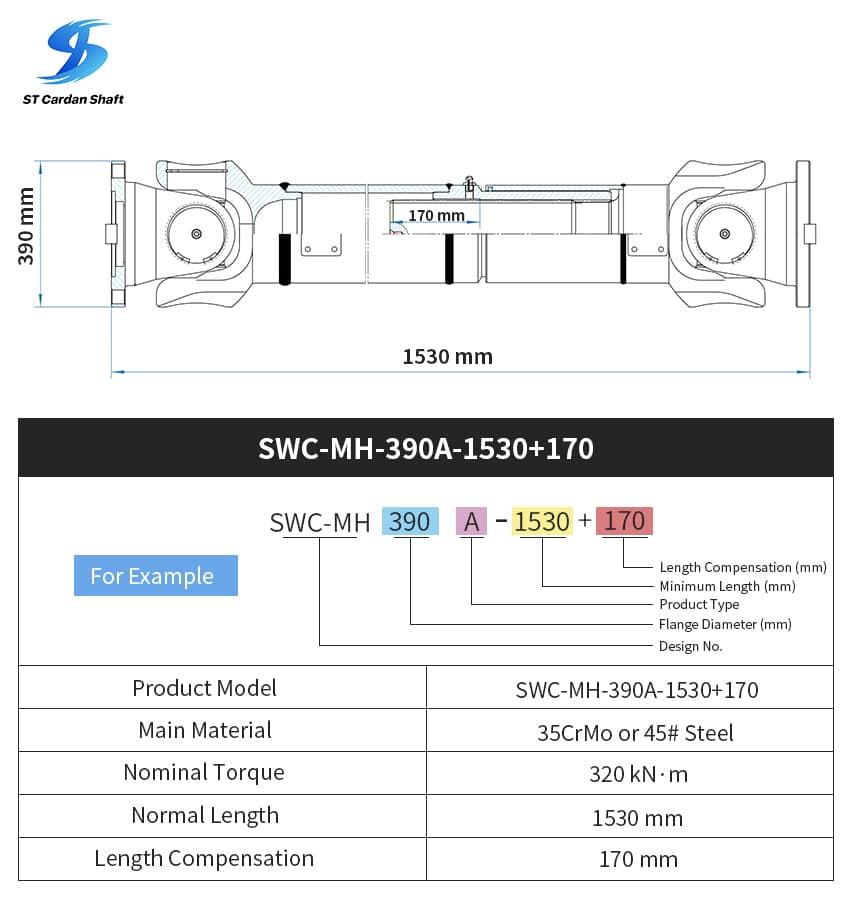

Below are the technical drawings and detailed product parameters for the Type A Series.

Design and Data Sheet – Heavy & Medium Duty Type A Series:

Model SWC-MH-160 SWC-MH-180 SWC-MH-200 SWC-MH-225 SWC-MH-250 SWC-MH-285 SWC-MH-315 SWC-MH-350 SWC-MH-390 SWC-MH-440 SWC-MH-490 SWC-MH-550 SWC-MH-620
L 740 800 900 1000 1060 1270 1390 1520 1530 1690 1850 2060 2280
Lv 100 100 120 140 140 140 140 150 170 190 190 240 250
m (kg) 65 83 115 152 219 311 432 610 804 1122 1468 2154 2830
Tn (kN·m) 21 28 40 56 80 120 160 225 320 500 700 1000 1250
Tf (kN·m) 10.5 14 20 28 40 58 80 110 160 250 350 500 625
β (°) 15 15 15 15 15 15 15 15 15 15 15 15 15
D 160 180 200 225 250 285 315 350 390 440 490 550 620
Df 160 180 200 225 250 285 315 350 390 440 490 550 620
D1 137 155 170 196 218 245 280 310 345 390 435 492 555
D2(H9) 100 105 120 135 150 170 185 210 235 255 275 320 380
D3* θ 110 121 140 152 168 194 219 245 273 299 325 402 426
Lm 95 105 110 125 140 160 180 195 215 260 270 305 340
k 16 17 18 20 25 27 32 35 40 42 47 50 55
t 4 5 5 5 6 7 8 8 8 10 12 12 12
n 8 8 8 8 8 8 10 10 10 16 16 16 16
d 15 17 17 17 19 21 23 23 25 28 31 31 38
b 20 24 32 32 40 40 40 50 70 80 90 100 100
g 6.0 7.0 9.0 9.0 12.5 12.5 15.0 16.0 18.0 20 22.5 22.5 25
ML (kg) 2.57 3 3.85 3.85 5.17 6.75 8.25 10.6 13 18.5 23.75 29.12 38.08
Flange Bolt
Size M14 M16 M16 M16 M18 M20 M22 M22 M24 M27 M30 M30 M36
Tightening torque (N.m) 180 270 270 270 372 526 710 710 906 1340 1820 1820 3170

Key Product Features:

    ● Heavy-duty welded joint – ensures secure torque transfer and consistent reliability in long-term operation.
    ● Length flexibility – available in 740–2,280 mm, with tailored sizing to fit different equipment layouts.
    ● High torque capability – supports up to 1,250 kN·m, making it a true high torque flexible drive shaft for demanding industrial setups.
    ● Broad flange compatibility – 160–620 mm flange diameter for wide equipment adaptability.
    ● Protective flexibility – compensates for minor misalignment and reduces vibration, extending service life of connected components.
    ● Custom flange options – choose from four connection types: bolt hole, face key, integral face pad, or hirth section. Companion flange adapters can also be customized upon request.
